High Suction Explosion Proof Vacuum Cleaners Atex Certified For Dust Collection

High Suction Explosion Proof Vacuum Cleaners Atex Certified For Dust Collection
High Suction Explosion Proof Vacuum Cleaners Atex Certified For Dust Collection

Large Image :  High Suction Explosion Proof Vacuum Cleaners Atex Certified For Dust Collection

Product Details:
Place of Origin: China
Brand Name: Ingmar
Certification: IOS9001 CE ATEX
Model Number: STEX Series
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation

High Suction Explosion Proof Vacuum Cleaners Atex Certified For Dust Collection

Description
Cleaning Method: Manual Backflush Volume: 100L
Filter: 29000C㎡ Volts: 380/50
Type: Industrial Model: Vacuum Cleaners
Highlight:

explosion proof vacuum cleaners 29000Cm2

,

380v 50hz atex certified vacuum cleaners

,

heavy duty vacuum cleaner industrial 100L

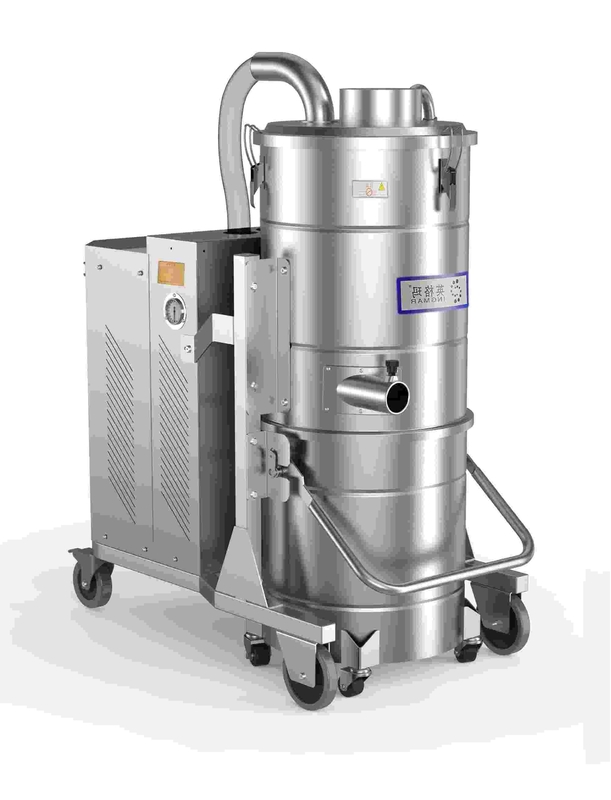

STEX Series Explosion Proof Industrial Vacuum Cleaners

ST/EX heavy-duty explosion-proof industrial vacuum cleaners are suitable for places with explosive dust, suitable for 21-22 explosion-proof areas, and collect various materials such as coal powder, magnesium product factories, chemical plants, pharmaceutical factories, flour mills and other places with explosion-proof requirements. It has strong suction and can work continuously for several days without stopping. It is suitable for large amounts of dust or relatively heavy materials.


Product features:



1. Heavy-duty explosion-proof industrial vacuum cleaner with high suction power

2. Aluminum-plated anti-static filter, polyester fiber material, Toray filter material (fine dust)

3. Upper and lower barrels separated design, convenient and fast

4. Equipped with overload, overcurrent, and phase loss explosion-proof protection switches,

5. The motor electrical components including the power switch are EX explosion-proof certified;

6. Air back-blowing principle to maintain strong suction.

7. Suitable for occasions with a lot of dust or heavy materials

8. Equipped with a pressure relief valve to ensure continuous cooling of the motor to prevent the motor from overheating.





Type Units ST/2210EX ST/3010EX ST/4010EX ST/5510EX ST/7510EX
Volts V/Hz 380/50 380/50 380/50 380/50 380/50
Power Kw 2.2 3.0 4.0 5.5 7.5
Vacuum KPa 22 26 28 32 34
Airflow M³/h 320 380 410 530 540
Cleaning method F F/Manual backflush F/Manual backflush F/Manual backflush F/Manual backflush F/Manual backflush
Filter C㎡ 29000 29000 29000 29000 29000
Noise Db(a) 64 69 69 72 72
Suctiner Mm 40-63 40-63 40-63 40-80 40-80
Volume L 100 100 100 100 100
Weigh Kg 88 95 103 145 188
Dimensions Mm 1800×590×1250
