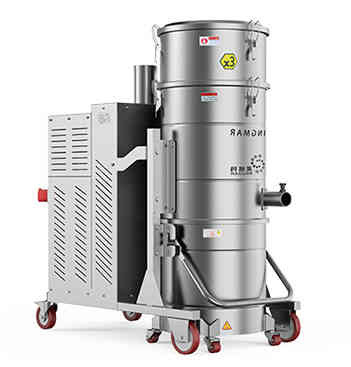

Explosion Proof Atex Certified Vacuum Cleaners , 380V Large Industrial Shop VAC

Explosion Proof Atex Certified Vacuum Cleaners , 380V Large Industrial Shop VAC
Explosion Proof Atex Certified Vacuum Cleaners , 380V Large Industrial Shop VAC

Large Image :  Explosion Proof Atex Certified Vacuum Cleaners , 380V Large Industrial Shop VAC

Product Details:
Place of Origin: China
Brand Name: Ingmar
Certification: IOS9001 CE ATEX
Model Number: ST/FCEX
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation

Explosion Proof Atex Certified Vacuum Cleaners , 380V Large Industrial Shop VAC

Description
Type: Explosion Proof Vacuum Industrial Cleaner Filter: 8500 41000 81000 120000 Cm²
Volume: 120L 140L Voltage: 380/50
Feature: Self-contained Explosion-proof Air Compressor
Highlight:

380V atex certified vacuum cleaners

,

atex certified explosion proof shop vac

,

120L explosion proof industrial vacuum

Explosion Proof Vacuum Cleaner Machine 380V Large Pulse Back Blowing

Product introduction:


ST/FCEX large pulse explosion-proof series is suitable for places with explosive dust, suitable for 21-22 explosion-proof areas, and collects various materials such as coal powder, magnesium products factory, chemical plant, pharmaceutical factory, flour mill and other places with explosion-proof requirements). It has strong suction and can work continuously for several days without stopping. It is suitable for large amounts of dust or relatively heavy materials.
Comes with explosion-proof air compressor (comes with air source)



1. Large pulse back-blowing explosion-proof industrial vacuum cleaner

2. Aluminum-plated anti-static filter, polyester fiber material, Toray filter material (fine dust)

3. Self-contained explosion-proof air compressor (self-contained air source)

4. Pulse back-blowing principle, clean the residue on the filter and maintain strong suction

5. The motor and electrical components including the power switch are EX explosion-proof certified

6. External air source compressed air to ensure the air permeability of the filtration system

7. CNC adjustment of pulse interval time (automatic cycle)

8. Equipped with a pressure relief valve to ensure continuous cooling of the motor to prevent the motor from overheating



Features:

Type Units ST/2210FC ST/3010FC ST/4010FC ST/5510FC ST/7510FC
Volts V/Hz 380/50 380/50 380/50 380/50 380/50
Power Kw 2.2 3.0 4.0 5.5 7.5
Vacuum KPa 22 26 28 32 34
Airflow M³/h 320 380 410 530 540
Cleaning method FC Pulse backflush FC FC FC FC FC
Filter C㎡ 41000 41000 81000 81000 81000
Noise Db(a) 64 69 69 72 72
Suctiner Mm 40-63 40-63 40-63 40-80 40-80
Volume L 120 120 120 120 120
Weigh Kg 120 120 130 190 190
Dimensions Mm 880×510×1240 1100×620×1400



Type Units ST/90FCEX ST/110FCEX ST/130FCEX ST/150FCEX ST/200FCEX ST/250FCEX
Volts V/Hz 380/50 380/50 380/50 380/50 380/50 380/50
Power Kw 9.0 11.0 13.0 15.0 20.0 25.0
Vacuum KPa 42 46 48 51 55 63
Airflow M³/h 1200 1200 1200 1450 1450 1110
Filter C㎡ 8500 8500 8500 120000 120000 85000
Noise Db(a) 64 69 69 72 72 72
Suctiner Mm 40-100 40-100 40-100 40-100 40-100 40-100
Volume L 140 140 140 140 140 140
Weigh Kg 240 270 290 350 370 390
Dimensions Mm 1400×700×1860
