Product Details:
|
Battery: | 80ahX4 | Effective Suction Width: | 700mm |
---|---|---|---|
Working Speed: | 3~7km∕h | Charging Time: | 8h |
Wheels: | 3 Wheels | Cleaning Method: | Electronic Dust Removal |
Drive Power: | 800w | Voltage: | 48V |
Battery Type: | Maintenance-free Lead Acid | ||
Highlight: | 48v vacuum sweepers ride on,48v industrial riding vacuum cleaners,3 wheels vacuum sweepers ride on |

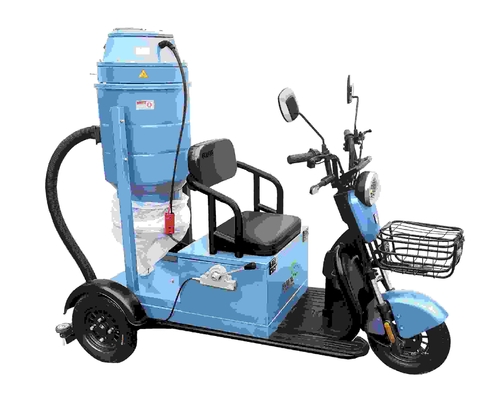

YGM-T3 Bag-type Electric Industrial Riding Vacuum Cleaners
The YGM-T3 single-barrel small electric vacuum cleaner is compact and flexible, easy to operate, and can replace multiple workers to greatly reduce labor costs. It uses electronic dust removal and automatic bagging to save time and effort. This industrial vacuum cleaner is mainly used for cleaning large areas of dust in workshops and relatively flat areas in factories (non-road vacuum cleaners). It uses a battery-charged pure suction design to avoid dust generated by sweepers and other methods, without secondary pollution or noise, and is efficient and fast. 4000 square meters per hour
Product features:
1. The driving body is small and flexible.
2. The battery adopts ultra-maintenance battery (lithium battery optional)
3. LCD display panel, real-time monitoring of power and voltage consumption.
4. The speed control has multiple gears and adjustable speed control. The low speed gear is used for vacuuming and the high speed gear is used for walking.
5. The mechanical lifting and pulling handle is adopted to avoid cumbersome circuit control and reduce the failure rate of electrical components.
6. The customized DC brushless high-power motor is adopted to maintain strong adsorption force
7. The back-blowing cleaning method is clean and fast
8. The unloading method adopts the side-over method to dump conveniently, quickly, and save time and effort.
Model | Unit | YGM-T3 |
Effective suction width | mm | 700 |
Handheld suction width | mm | 450 |
Effective working efficiency | ㎡/h | 4000 |
Gradability | % | ≤33 |
Wheels | 3-wheel/4-wheel | 3 wheels |
Filtering method | Cartridge filter | Cartridge filter |
Cleaning method | Electronic dust removal | Electronic dust removal |
Unloading method | Automatic bagging discharge | Automatic bagging discharge |
Suction power | kw | 1650W |
Suction force | mbar | 360 |
Air volume | M³/h | 520 |
Voltage | V | 48 |
Battery type | Maintenance-free lead-acid/lithium battery | Maintenance-free lead acid |
Battery capacity | ah | 80ah |
Charger | A | /15A |
Charging time | H | 8h |
Continuous working time | h | 4~5 |
Vibrating motor power | W | 500W |
Drive power | w | 800 |
Turning radius | mm | 1500 |
Working speed | km∕h | 3~7 |
Travel speed | km∕h | 13 |
Filtering area | ㎡ | 6 |
Cab | Open/closed | Open |
Overall machine size | L×W×H | 190*80*1650 |
Machine weight | kg | 380 |
Performance characteristics:
● High suction fan, double filtration system, super strong negative pressure suction.
● Ride-on vacuum cleaner with walking vacuum cleaner and handheld vacuum cleaner in one.
● The body adopts brand parts, which provides a good foundation for the stable performance of the product.
● Super negative pressure vacuuming technology, the theoretical value of dust bucket utilization can reach 100%.
● High-performance maintenance-free battery, no leakage, no harmful gas, no need for later maintenance, low-carbon and environmentally friendly.
● No cab, wider driving vision.
● Inflatable and enlarged tires, sturdy and durable, high chassis, no need to slow down when passing speed bumps.
● Display total mileage and instant speed, with an error of better than 2%;
● High-end LED headlights, work in the early morning and at night, safe and reliable.
● Display left turn, right turn, brake, light, and other graphics or files.
● Voice prompt reversing function to improve full reversing.
● Real-time display of the working voltage of the battery, if it is too low, prompt you to charge quickly.
"Accessories included:
1. Handheld accessories (a pair of S steel pipes, a round brush, a flat nozzle, two connecting nozzles, and two vacuum cleaners)
2. A charger
3. A set of vehicle tool kits (to be determined)"
