Product Details:
|
Cleaning Method: | Electronic/Fully Automatic | Air Volume: | 520 M³/h |
---|---|---|---|
Cab: | Closed | Working Speed: | 3~7km∕h |
Charging Time: | 8h | Wheels: | 3 Wheels |
Voltage: | 48V | ||
Highlight: | 48v vacuum sweepers ride on,adjustable speed ride on vacuum cleaners,48v battery vacuum sweepers ride on |

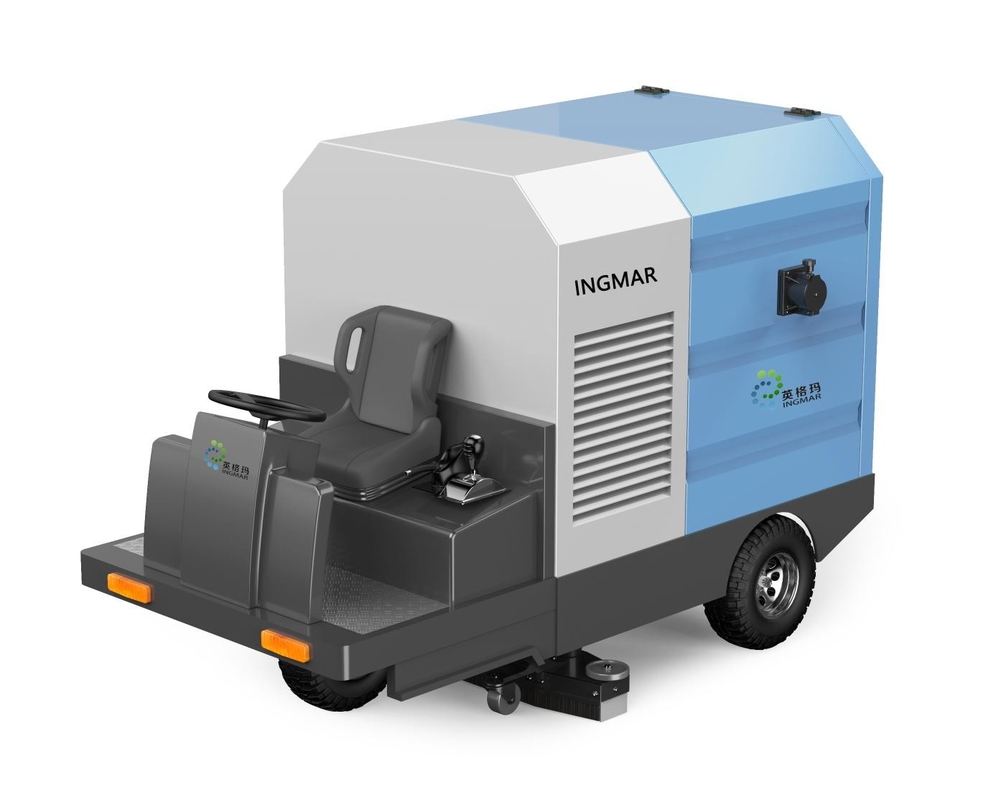

Battery Powered Ride On Industrial Vacuum Cleaner YGM/80-3
YGM/80-3 battery-powered industrial vacuum truck is easy to operate, replacing multiple workers and greatly reducing labor costs. It adopts a fully automatic dust removal and material discharge method, which is fast and time-saving. This industrial vacuum truck is mainly used for dust cleaning on large areas of the factory workshop and relatively flat ground in the factory area (non-road vacuum truck). It adopts a battery-powered pure suction design to avoid dust generated by sweepers and other methods, without secondary pollution and noise, and is efficient and fast. 5000 square meters per hour
Product features:
1. The driving body is small and flexible.
2. The battery adopts ultra-maintenance battery (lithium battery optional)
3. LCD display panel, real-time monitoring of power and voltage consumption.
4. The speed control has multiple gears and adjustable speed control. The low speed gear is used for vacuuming and the high speed gear is used for walking.
5. The mechanical lifting and pulling handle is adopted to avoid cumbersome circuit control and reduce the failure rate of electrical components.
6. The customized DC brushless high-power motor is adopted to maintain strong adsorption force
7. The back-blowing cleaning method is clean and fast
8. The unloading method adopts the side-over method to dump conveniently, quickly, and save time and effort.
Item | Unit | YGM/80-3 |
Effective cleaning width | mm | 850 |
Effective working efficiency | ㎡/h | 5000 |
Climbing ability | % | ≤33 |
Climbing ability | % | ≤33 |
Wheels | 3-wheel/4-wheel | 3 wheels |
Suction power | kw | 3300W |
Suction force | mbar | 410 |
Air volume | M³/h | 520 |
Clean-up method | Electronic/Fully Automatic | Electronic/Fully Automatic |
Voltage | V | 48 |
Battery | ah | 100ahx4 |
Charger | A | /15A |
Charging time | H | 4~6 |
Continuous working time | h | 3~5 |
Drive power | w | 800 |
Turning radius | mm | 900 |
Working speed | km∕h | 3~7 |
Travel speed | km∕h | 13 |
Filter area | ㎡ | 6 |
Cab | Open/Closed | Open |
Overall dimensions | L×W×H | 1500×900×1200 |
Machine weight | kg | 440 |
Performance characteristics:
● High suction fan, double filtration system, super strong negative pressure suction.
● Ride-on vacuum cleaner with walking vacuum cleaner and handheld vacuum cleaner in one.
● The body adopts brand parts, which provides a good foundation for the stable performance of the product.
● Super negative pressure vacuuming technology, the theoretical value of dust bucket utilization can reach 100%.
● High-performance maintenance-free battery, no leakage, no harmful gas, no need for later maintenance, low-carbon and environmentally friendly.
● No cab, wider driving vision.
● Inflatable and enlarged tires, sturdy and durable, high chassis, no need to slow down when passing speed bumps.
● Display total mileage and instant speed, with an error of better than 2%;
● High-end LED headlights, work in the early morning and at night, safe and reliable.
● Display left turn, right turn, brake, light, and other graphics or files.
● Voice prompt reversing function to improve full reversing.
● Real-time display of the working voltage of the battery, if it is too low, prompt you to charge quickly.
